Product Details
Place of Origin: CHINA
Brand Name: BOX SPACE
Certification: CE SGS
Model Number: Flat pack container
Payment & Shipping Terms
Minimum Order Quantity: 4 unit
Price: USD1695/unit
Packaging Details: Sandwich Packing
Delivery Time: 7-14 days
Payment Terms: T/T
Supply Ability: 3000 units per month
Size: |
5800L*2400W*2896H Mm（Can Be Customized) |
Frame: |
SGC440 Galvanized Steel+Q345B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm Cement Fiber Board+PVC Flooring |
Roofing: |
75mm Glass Wool Insulation Layer |
Anti-rust: |
80um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Installaion: |
3 Workers 2 Hours |
Leadtime: |
7-14 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |
Size: |
5800L*2400W*2896H Mm（Can Be Customized) |
Frame: |
SGC440 Galvanized Steel+Q345B Galvanized Steel |
Wall: |
50/75mm Rockwool Sandwich Panel |
Floor: |
18mm Cement Fiber Board+PVC Flooring |
Roofing: |
75mm Glass Wool Insulation Layer |
Anti-rust: |
80um Powder Coating+Galvanized |
Painting: |
Powder Coating |
Installaion: |
3 Workers 2 Hours |
Leadtime: |
7-14 Days |
Wind Resistence: |
120KM/H |
Anti-seismic: |
Grade 8 |

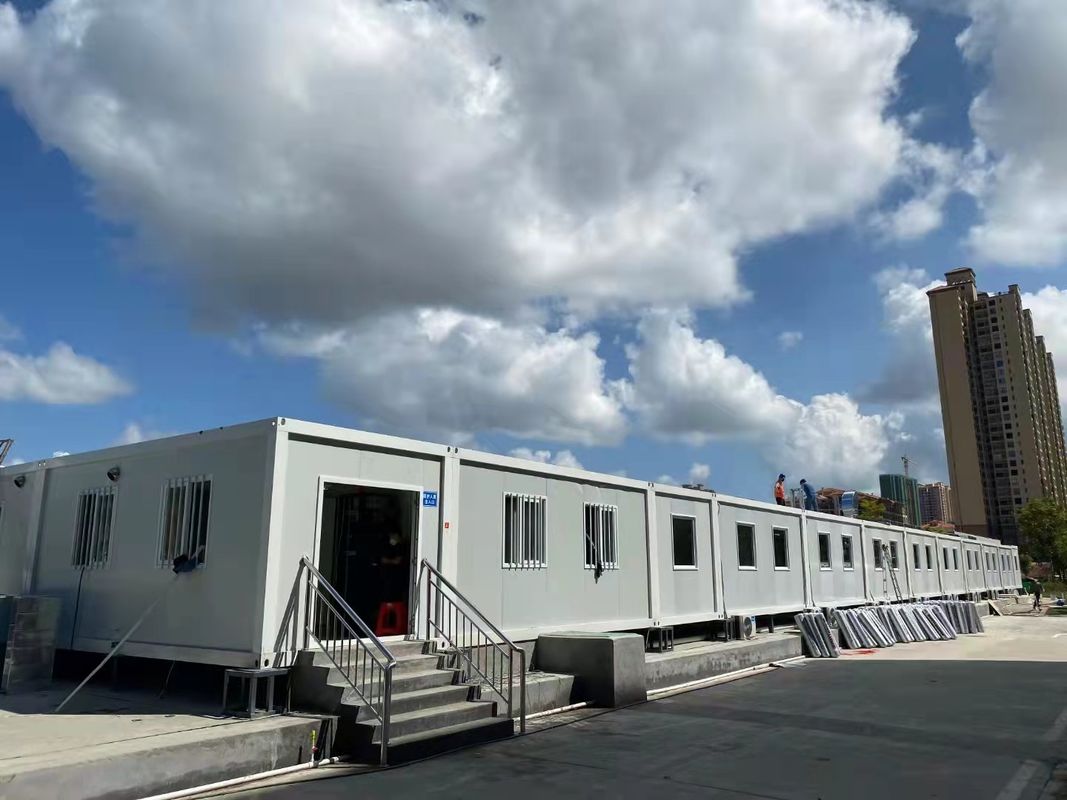

BOX SPACE Flat Pack Container Clinic Flat Pack Container Hospital For Emergency
BOX SPACE Flat pack container is a modular house with the top and bottom prefabricated in factory, which will help you save a lot of time and labour on installation. At the same time, its efficient internal drainage system, and stronger frame, gives it greater safety and durability.
It features a flat roof, insulation sandwich panel walls, a steel door and two windows,and it's customizable in size and color. Installation is easy and fast, making it the perfect choice for worker dormitory, hotel, site office, school, personal apartment, and even for rental business.
Structure:
Applications:
Additional options for your container house
Specifications:
| Flat pack container specifications | |||||||
| Specification | Length * width * height (mm) | Exterior Size:5800L ×2400W× 2896H mm | |||||
| Roof form | Flat roof, drainage within the organization | ||||||
| The layer number | ≤3layer | ||||||
| DATAS | Life time | 20years | |||||
| Floor live load | 2.0KN/㎡ | ||||||
| Roof live load | 1.0KN/㎡ | ||||||
| Wind load | 120KM/H | ||||||
| Anti earthquake standard | Grade 8 | ||||||
| Item | Name | Specification | Qty | Unit | |||
| Top frame system | Top frame main beam | 2.5mm thick, Q235B galvanized steel, 110g/m2 galvanized | 4 | pc | |||
| Top frame secondary beam A | C type steel, 80×40mm, 1.5mm; Q235B galvanized steel, 110g/m2 galvanized | 5 | pc | ||||
| Corner pieces | shape 210x160x200mm, galvanized 110g/m2 | 4 | pc | ||||
| Skin board | 0.45mm thinck | 1 | set | ||||
| Ceilling panel | V-831 moulded steel plate 0.326mm thick | 6 | pc | ||||
| Colume system | Column | 210x160mm, Q235B galvanized steel, 110g/m2 galvanized | 4 | pc | |||
| Column stiffener | L type, 2.5mm thick, 180×120×40mm shape | 4 | pc | ||||
| Rain water pipe | d=50mm, UPVC, L=2610mm | 4 | pc | ||||
| Hexagon bolts | M12×40 Hexagon bolts | 48 | set | ||||
| Bottom system | Bottom frame main beam | 2.5mm thick, Q235B galvanized steel, 110g/m2 galvanized | 4 | pc | |||
| bottom frame secondary beam | C section steel of 120*60mm, 1.5mm; Q235B galvanized steel, 110g/m2 galvanized | 9 | pc | ||||
| corner pieces | 210*150*160mm, galvanized 110g/m2 | 4 | pc | ||||
| flume | t=1mm; galvanized | 4 | pc | ||||
| Cement board | 18mm Cement fiber board | 6 | pc | ||||
| PVC carpet | 1.6mmPVC flooring | 14 | square meters | ||||
| Column cover | Column cover, 0.5mm color steel plate | 4 | pc | ||||
| Eletrict system | Distribution box | including air opening, leakage protection | 1 | set | |||
| Industrial outlet | (including plug) 16A, including cable charge | 1 | set | ||||
| Wires | 220V wirings, 6㎡ input, 4㎡ for AC, 2.5㎡ for socket, 1.5㎡ for lights | 1 | set | ||||
| Light | LED lights | 4 | set | ||||
| Wall panel | 0.326mm steel skins, 75mm rock wool sandwich panel, 80kg/m³ volume-weight | 41 | square meters | ||||
| Door | size: 840*2035mm Steel door |
1 | set | ||||
| Windows | size: 800*1130mm UPVC windows,4mm double glass |
2 | set | ||||
Installation
3 workers+2 hours = 1 unit
Packing & Loading
"Sandwich" packing:
All walls, columns, windows, door, and other accessories are packed in one unit.
Loading: 1*40HQ can load 6-8 units (Depends on the wall thickness)
Project cases
BOX SPACE will offer a range of technical support and service options to ensure that your product is running at its peak performance. Our technical team experts are available to provide advice and assistance with any technical issues you may experience. And our customer service team is also available to answer any questions or concerns you may have regarding your purchase.
