Product Details:
|
Size: | 5950L*3000W*2800H Mm(Can Be Customized) | Frame: | Q235B Galvanized Steel |
---|---|---|---|
Wall: | 50/75mm Rockwool Sandwich Panel | Floor: | 18mm MGO/Cement Fiber Board |
Roofing: | 40mm Glass Wool Insulation Layer | Anti-rust: | 110um Powder Coating+Galvanized |
Painting: | Powder Coating | Color: | Customized |
Installaion: | 4 Workers 2 Hours | Leadtime: | 7 Days |
Wind Resistence: | 120KM/H | Anti-seismic: | Grade 8 |
Highlight: | Detachable Expandable Prefab Homes,Detachable Tiny Movable House,Stackable Expandable Prefab Homes |

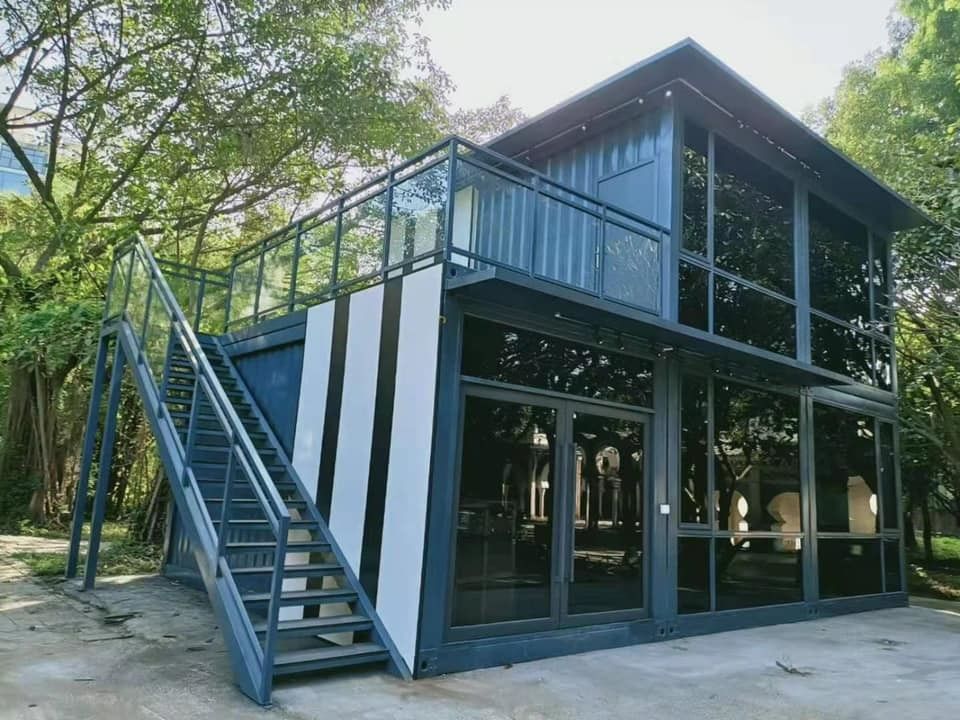

Detachable container is a fully demountable structure, which allows it to be loaded with far more quantity than other products, and also makes it can be customised to any size .
Installation
4 workers+2 hours = 1 unit
Packing
Frames: Bubble films wrapped
Loading
1*40HQ can load 17 units
Specifications
Detachable container specifications | ||||||
Specification | Length * width * height (mm) | Exterior Size:5950 × 3000 × 2800mm | ||||
Roof form | Flat roof, drainage within the organization | |||||
The layer number | ≤3layer | |||||
Datas | Life time | 15 years | ||||
Floor live load | 2.0KN/㎡ | |||||
Roof live load | 0.7KN/㎡ | |||||
Wind resistance | 120KM/H | |||||
Anti earthquake standard | Grade 8 | |||||
Item | Name | Unit | Qty | Length | Thickness | |
Frame (all frame 110g galvanized technic) |
Top beam | Strip | 2 | 5630mm | 2.3mm | |
Strip | 2 | 2680mm | ||||
Bottom beam | Strip | 2 | 5630mm | |||
Strip | 2 | 2680mm | ||||
Column | Strip | 4 | 2480mm | |||
Corner piece | pc | 8 | 160x160x160mm | 3.5mm | ||
Slot | Galvanized buckle groove | Strip | 2 | 5730mm | 1.1mm | |
Strip | 2 | 2800mm | ||||
Top & Bottom purlin & square tube (galvanized technic) |
Bottom purlin | Strip | 9 | 50*100*2990mm | 1.2mm | |
Top purlin | Strip | 2 | 50*50*2800mm | 1.5mm | ||
Strip | 3 | 40*80*1880mm | 1.1mm | |||
Strip | 6 | 40*60*1880mm | 1.0mm | |||
Roof | 980 type pressed tile | pc | 6 | 2950mm | 0.5mm | |
Ceilling | pc | 6 | 2800mm | 0.25mm | ||
Floor | MGO Board | pc | 5 | 1147*2800mm | 18mm | |
Flooring | PVC flooring | roll | 1 | 1.6mm | ||
Wall panel | both sides color steel 50mm rock wool sandwich panel (Volumn weight: 60KG/m³) |
pc | 16 | 2560*950mm | 0.326mm | |
Door | Fire proof steel doors | Set | 1 | 950*2035 mm | ||
Window | UPVC sliding window | Set | 2 | 925*1200mm | ||
Rub Tape | Rub Tape | pc | 1 | |||
Roof insulation | 40mm glass wool insulation layer | Roll | 1 | |||
Electric system | Distribution box including air opening, leakage protection |
pcs | 1 | |||
Wirings 220-250Voltage 4㎡ for input 2.5㎡ for socket/AC 1.5㎡ for lights |
Set | 1 | ||||
LED light, 36W | pcs | 2 | ||||
Sockets 3 for sockets(10A) 1 for AC(16A) |
pcs | 4 | ||||
Switch | pcs | 1 |
